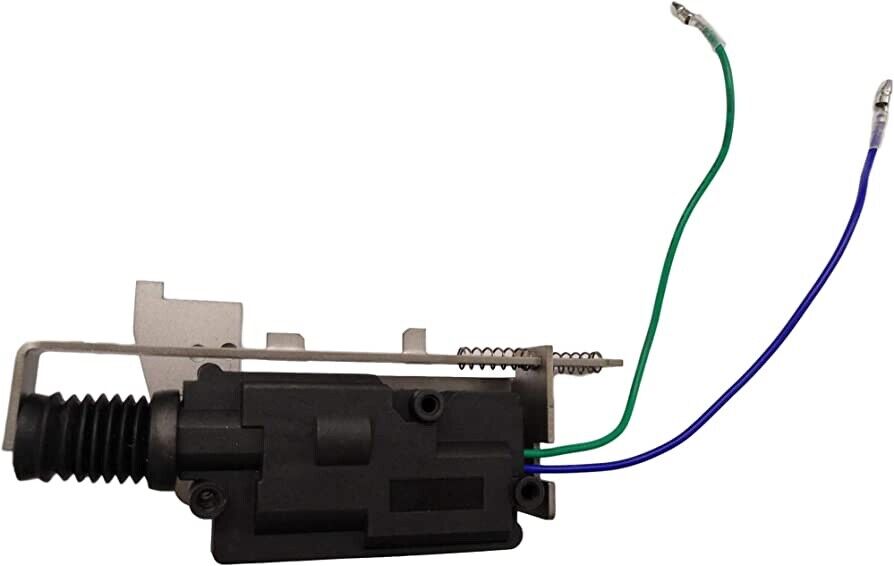

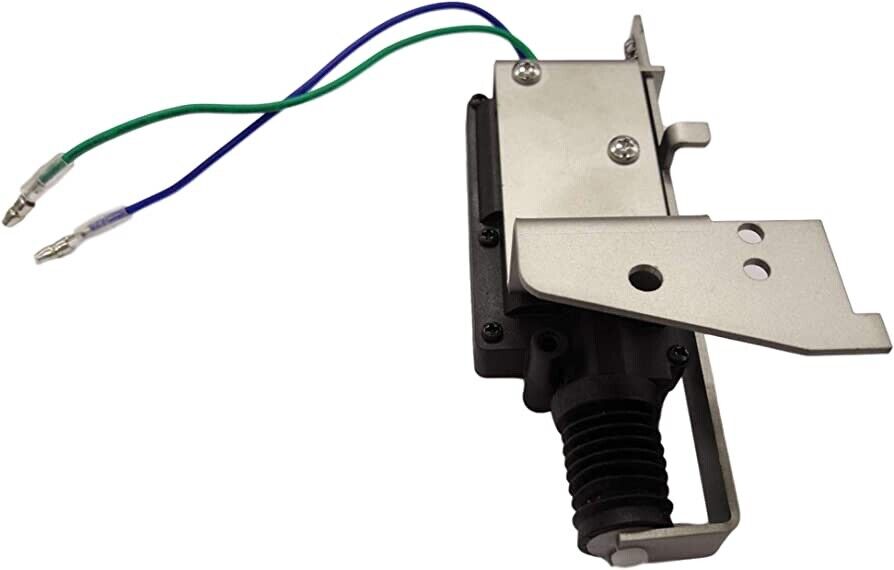

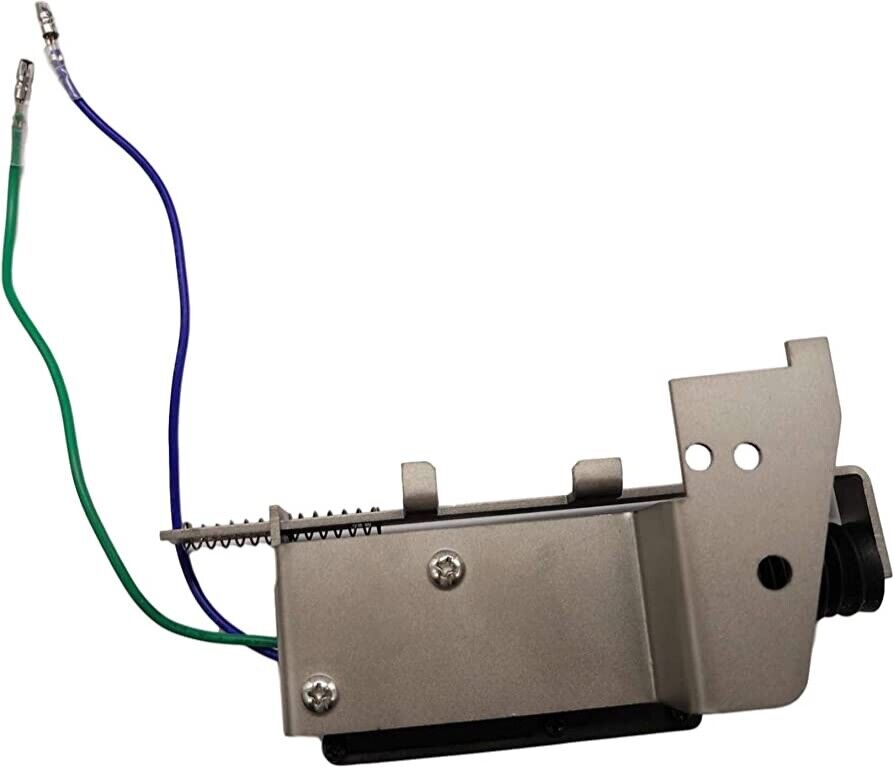

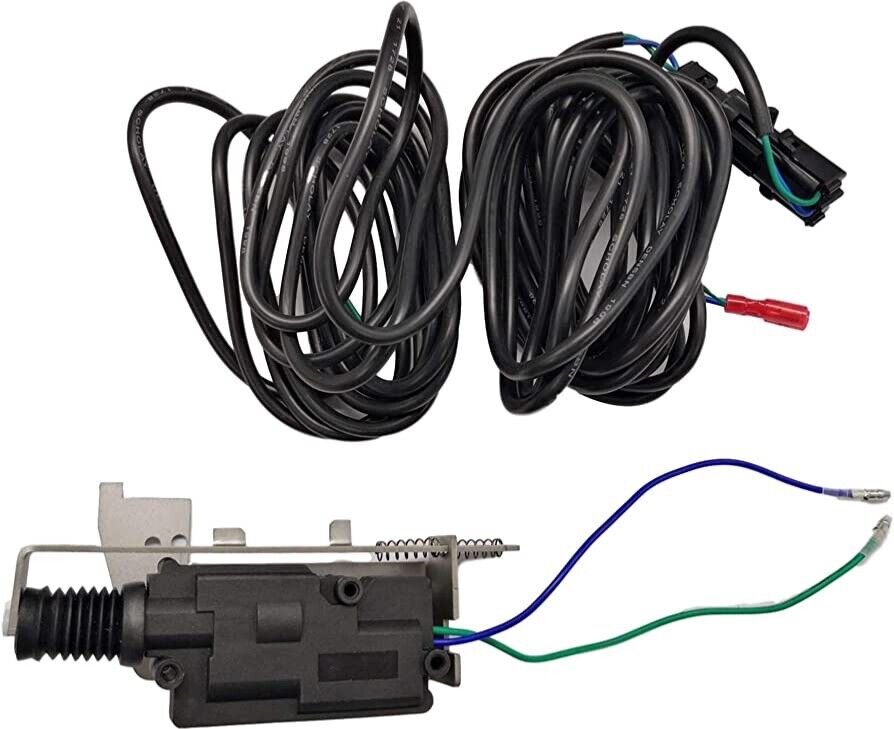

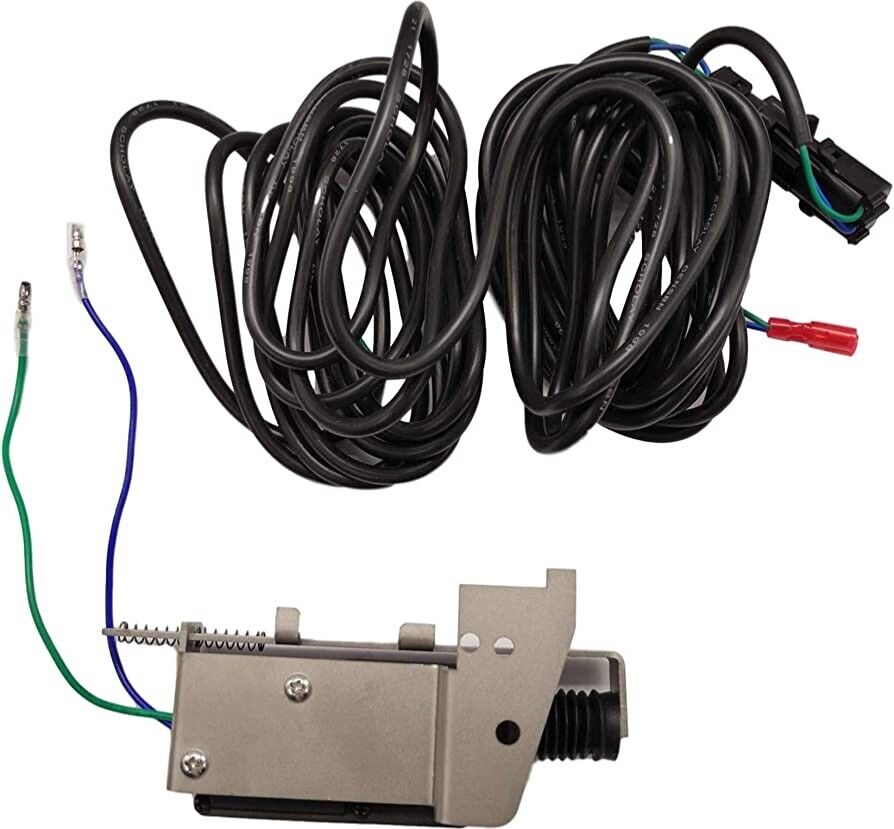

Power Tailgate Lock for Tacoma 2016-2023 , Tundra 2007-2019

NOTE: THIS ITEM DOES NOT HAVE INSTALLATION INSTRUCTIONS. YOU WILL NEED TO WATCH YOUTUBE VIDEOS.

NOTE FOR WHEN I INSTALLED MY OWN:

• Take your time and route the wire properly and drill a 1/4 hole in the rubber grommet under the passenger seat and plastic covers on the tailgate to route the wire.
• You want to run the wire to the passenger side door and it will tie into the green and red wire.
• Go to auto parts store and ask for “t-tap connectors.”
• They are easy to use and allow you to disconnect the wire with a spade connector.
• Just a heads up, the sheet metal can have some burs that snag as you use it. You can file those down or let them wear down naturally.

ABOUT THIS ITEM:

• The Power Tailgate Lock Replacement for Tundra 2007-2019, Tacoma 2016-2020 Replaces Pop N Lock PL8535.
• Helps prevent your tailgate and contents from being stolen.The lock mounts permanently inside the tailgate.Replacement tailgates can cost in excess of thousands of dollars due to today's factory installed electronics.
• Easy do-it-yourself installation.As easy as locking your doors.Integrated power locks secure your vehicle, with the ease of your truck's key fob.
• Available for trucks with or without a factory tailgate lock, great for trucks with a locking tonneau cover.Noted:No instruction included.

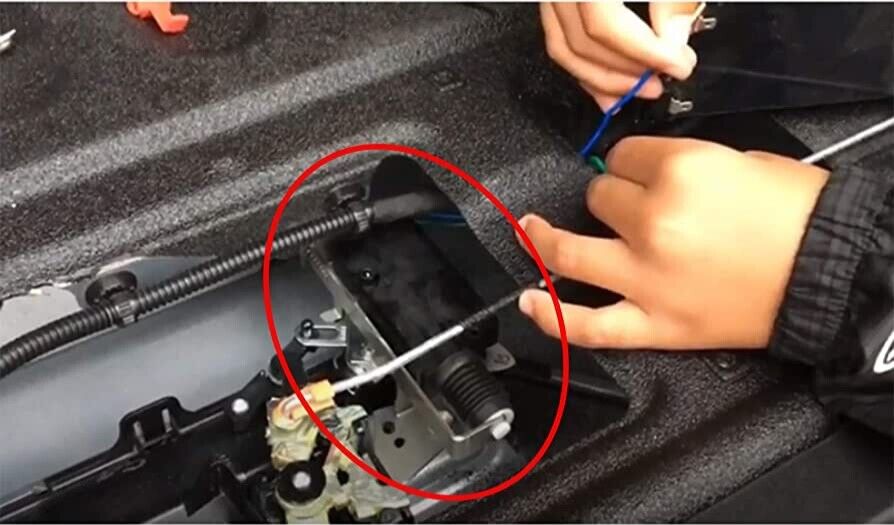

• No drilling required of surface.Automatically locks tailgate when power doors are locked,Mounts inside the tailgate hidden from view.
• Package Dimensions: 12.6 x 5.6 x 3.2 inches

WHAT YOU WILL NEED TO INSTALL

• Zip Ties
• Posi taps or Solder to connect the wires.
• Fishing wire or a coat hanger will help you fish the wires.
• 5/16” drill bit and drill or a way to bore holes
• 10mm Wrench
• T30 Driver.

If you have these on hand you are set to go.
